Striker, Removing And Installing: Removing

-- Remove the bolts -arrows- and remove the striker -1-.

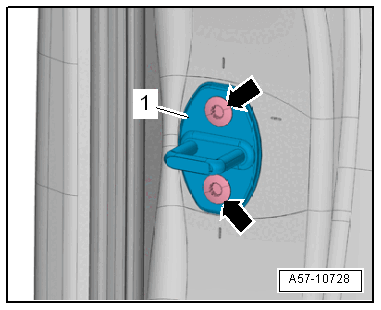

Fig 1: Locating Striker Bolts

GWWA57-10728

Courtesy of AUDI OF AMERICA, LLC
