Housing, Removing And Installing

Special tools and workshop equipment required

• Hook Tool: T40207

Removing

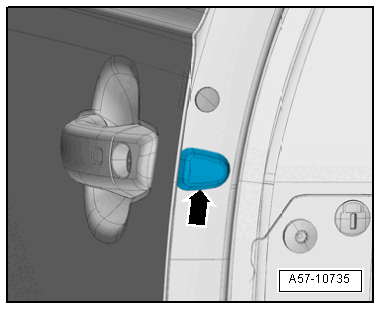

-- Remove the cap -arrow-.

Courtesy of AUDI OF AMERICA, LLC

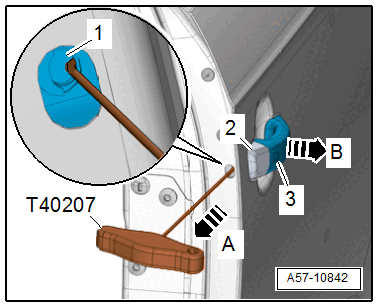

-- Pull the bracket -1- outward with the : T40207  in the direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the door handle -3- slightly outward in the direction of -arrow B- and remove the housing -2- from the mounting bracket.

Installing

Install in reverse order of removal.
