Overview - Power Steering Pump, 6-Cylinder FSI, With Dynamic Steering

Power Steering Pump, Removing and Installing, 6-Cylinder FSI Engine, Vehicles without Dynamic Steering. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, 6-CYLINDER FSI, WITH DYNAMIC STEERING .

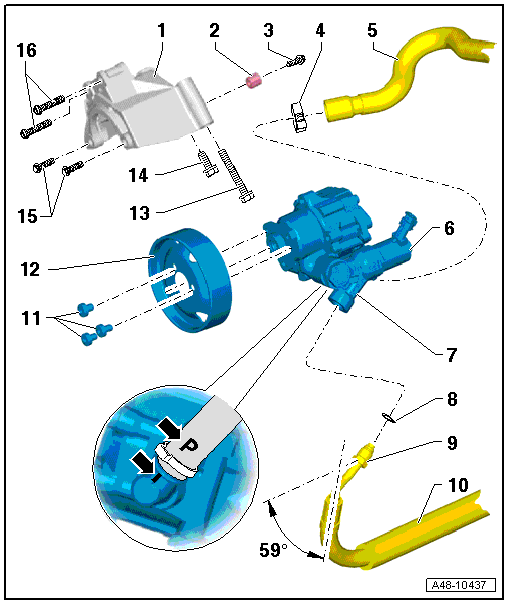

Power Steering Pump Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
2. Sleeve
   • Drive the sleeve back slightly to install the power steering pump.
3. Bolt
   • 20 Nm
4. Clamp
   • Tension using Hose Clip Pliers VAG1275A
   • Always replace if removed
5. Intake Hose
   • The "P" marking on the evacuation hose -arrow- must align with the formed seam -arrow- on the power steering pump.
6. Power Steering Pump Regulator Valve -(V119)-
   • The power steering pump and the control valve are one component and can only be replaced together.
7. Power Steering Pump -V119-
   • With Power Steering Pump Regulator Valve -(V119)-
   • The power steering pump and the control valve are one component and can only be replaced together. Refer to -item  6-.
   • Allocate correct version.
   • Delivery pressure, checking. Refer to POWER STEERING PUMP DELIVERY PRESSURE, CHECKING, 6-CYLINDER FSI .
   • Removing and installing. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, 6-CYLINDER FSI, WITH DYNAMIC STEERING .
   • Fill with Hydraulic Fluid before installing
   • Bleed the steering. Refer to STEERING, BLEEDING AFTER REPLACING .
   • Check hydraulic fluid level. Refer to POWER STEERING FLUID LEVEL, CHECKING .
   • Steering System, checking for leaks. Refer to STEERING, CHECKING FOR LEAKS .
8. Seal
   • Always replace if removed
9. Union Nut
   • 38 Nm
10. Pressure Line
    CAUTION:

    • Insert the pressure line completely when installing.
    • Note the installation position: the angle between the line connection and the power steering pump axle must be approximately 59°.
    • Depending on the version, also mounted to the A/C compressor
11. Bolt
    • 22 Nm
12. Belt Pulley
13. Bolt
    • 20 Nm
    • For securing the bracket to the engine.
    • Note the different bolt lengths.
14. Bolt
    • 20 Nm
    • For securing the bracket to the engine.
    • Note the different bolt lengths.
15. Bolt
    • 20 Nm
    • For securing the power steering pump to the bracket
16. Bolt
    • 20 Nm
    • For securing the bracket to the engine.
