Component Location Overview -

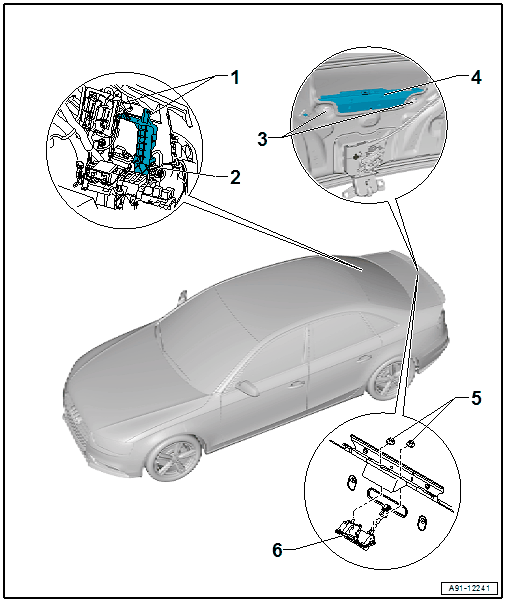

Fig 1: Rearview Camera System Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
- Quantity: 2
Rearview Camera System Control Module -J772-
- Connector assignment, refer to Rearview Camera System Control Module -J772- CONNECTORS .
- Removing and installing, refer to Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
Nut
- 6 Nm
- Quantity: 2
Anti-Theft Protection
Nut
- 6 Nm
- Quantity: 2
Rearview Camera -R189-
- Removing and installing (Sedan), refer to Rearview Camera -R189-, REMOVING AND INSTALLING, SEDAN .
- Removing and Installing, Avant, refer to Rearview Camera -R189-, REMOVING AND INSTALLING, AVANT
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
