Pneumatic System Compressor, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Remove the outer single seat. Refer to SINGLE SEAT, REMOVING AND INSTALLING .

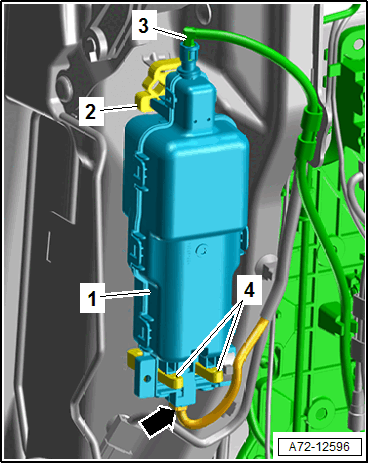

-- Remove the rubber fasteners -2 and 4- from the brackets on the compressor -1-.
-- Remove the pneumatic line -3- by lifting the safety catch slightly with a small flat-head screwdriver.
-- Disconnect the connector -arrow- by pressing the release.
