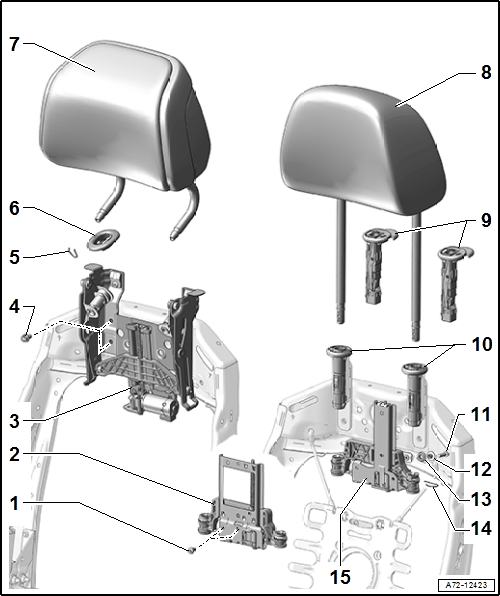

Overview - Headrest
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 2
- Install with locking compound. Refer to the Parts Information for the locking compound.
- 2 Nm
- Headrest Adjustment Motor
- For the Sport seat
- Driver Headrest Height Adjustment Motor - V563-, Front Passenger Headrest Height Adjustment Motor - V564-
- Removing and Installing. Refer to HEADREST HEIGHT ADJUSTMENT MOTOR - V563- / - V564-, REMOVING AND INSTALLING, SPORT SEAT .
- Headrest Adjustment Motor
- For reclining seats
- Driver Headrest Height Adjustment Motor - V563-, Front Passenger Headrest Height Adjustment Motor - V564-
- Removing and Installing. Refer to HEADREST HEIGHT ADJUSTMENT MOTOR - V563- / - V564-, REMOVING AND INSTALLING, RECLINING SEAT .
- Bolts
- Quantity: 4
- Install with locking compound. Refer to the Parts Information for the locking compound.
- 7 Nm
- Clip
- Quantity: 2
- Trim
- Quantity: 2
- for cover
- Headrest
- For reclining seats
- Cannot be disassembled
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Headrest
- For Standard/Sport seat
- Cannot be disassembled
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Headrest Guides
- With release button
- For manual adjustable headrests
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Headrest Guides
- For power adjustable headrests
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2 Nm
- Bushing
- Quantity: 2
- Rubber Grommet
- Quantity: 2
- Insert in the backrest
- Clip
- Quantity: 2
- Headrest Adjustment Motor
- For Standard seats
- Driver Headrest Height Adjustment Motor - V563-, Front Passenger Headrest Height Adjustment Motor - V564-
- Removing and Installing. Refer to HEADREST HEIGHT ADJUSTMENT MOTOR - V563- / - V564-, REMOVING AND INSTALLING, STANDARD SEAT .
