Headrest Guide, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Standard Seat Headrest Guide:

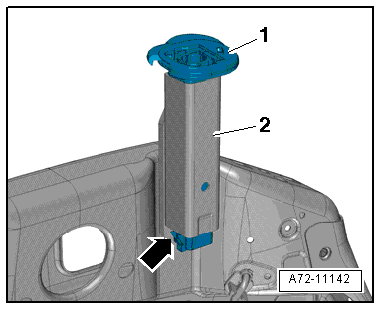

Fig 1: Retaining Tab -Arrow-, Headrest Guide -1-, And Backrest Frame -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .

-- Manual adjustable headrest: press the tabs -arrow- down while pulling the headrest guide -1- out of the backrest frame -2-.

-- Power adjustable headrest: press the tabs -arrows- down while pulling the headrest guide -1- out of the backrest frame.

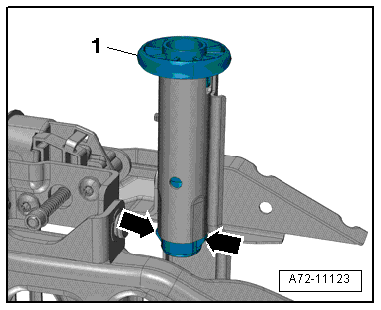

Fig 2: Retaining Tabs -Arrows- And Headrest Guide -1-

Courtesy of AUDI OF AMERICA, LLC

Sport Seat Headrest Guide:

Fig 3: Retaining Tabs -Arrows- And Headrest Guide -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the pressure distribution plate. Refer to PRESSURE DISTRIBUTION PLATE, REMOVING AND INSTALLING .

-- Press the tabs -arrows- down while pulling the headrest guide -1- out of the backrest frame.
