Pneumatic System Compressor, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the rubber fastener from the brackets on the compressor -1- -arrows-.

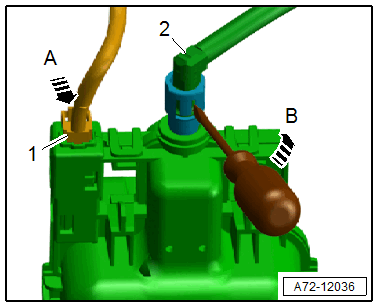

-- Press the safety catch -arrow A- to disconnect the connector -1-
-- Remove the pneumatic line -2- by lifting the safety catch slightly with a small flat-head screwdriver -arrow B-.
