Massage Function Valve Block, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

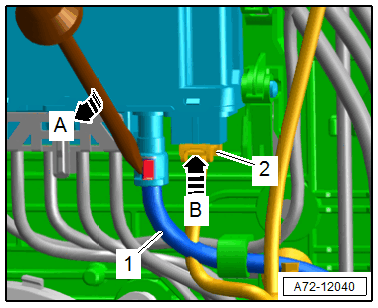

-- Disconnect the connector -2- at the massage function valve block by pressing the securing tab -arrow B-.
-- Remove the pneumatic line -1- by lifting the safety catch slightly with a small flat-head screwdriver -arrow A-.

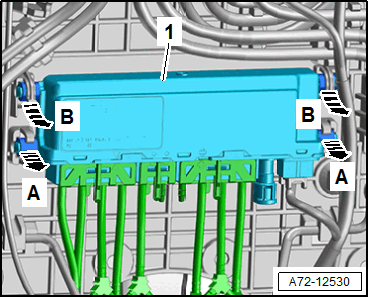

-- Unclip the massage function valve block -1- from the module carrier -A arrows-.
-- Disengage the massage function valve block downward from the module carrier -B arrows-.

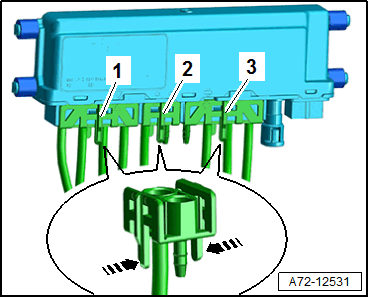

-- Disconnect the pneumatic line connectors -1, 2, and 3- from the massage function valve block by pressing the release buttons -arrows-.
-- Remove the massage function valve block.
