Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the Programmable Module Installation (PMI) process for the Front Control/Display Interface Module (FCDIM) following the on-screen instructions.
- 2.
Remove the Audio Front Control Module (ACM). Refer to Audio Control Module (ACM) .
- 3.

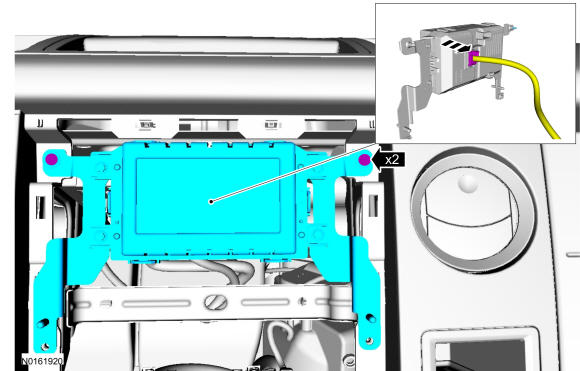

Remove the two bolts and the Front Control/Display Interface Module (FCDIM).- Disconnect the electrical connector.
- To install, tighten to 2.5 Nm (23 lb-in).
