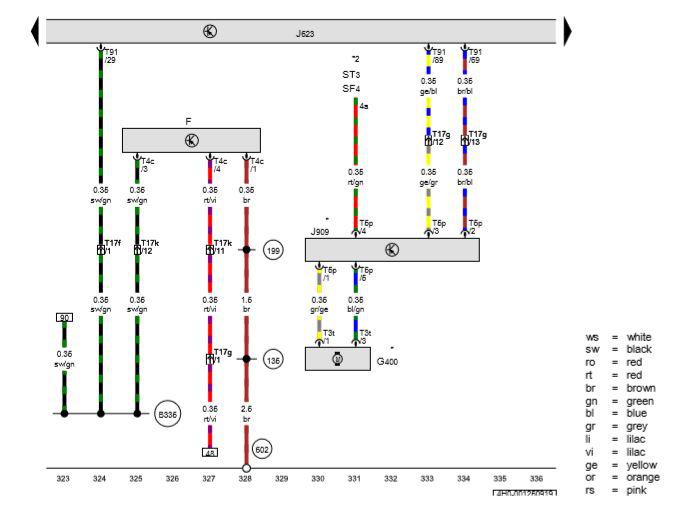

Brake Lamp Switch, Engine Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW4H0-001250412

Courtesy of AUDI OF AMERICA, LLC
