Front Emergency Release Cable, Parking Lock, Removing And Installing: Installing

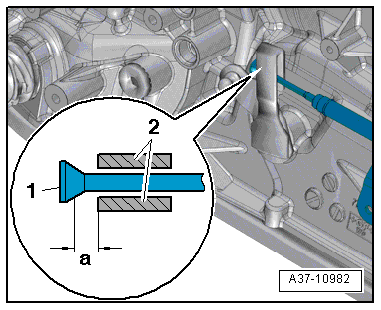

Fig 1: Identifying Distance

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Be sure to maintain the distance -a- between the emergency release cable -1- and the lever -2-.

• Dimension -a- = minimum 2 mm

-- Attach the rear emergency release cable -2- to the front emergency release cable -1- from the top in direction of -arrow A-

Fig 2: Identifying Emergency Release Cable

Courtesy of AUDI OF AMERICA, LLC

-- Install the sleeve -3- until it engages in direction of -arrow B-.

-- Check the parking lock emergency release. Refer to EMERGENCY RELEASE FROM P .
