Power Steering Pump, Removing And Installing, Vehicles Without Dynamic Steering With 12-Cylinder Engine: Installing
Installation is the reverse of removal, with special attention to the following:

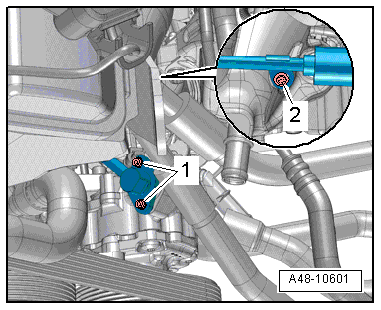

-- Position the pressure line on the power steering pump, tighten the bolt -2- first and then bolts -1-.
Replace the O-ring.
Before installing the new power steering pump on the intake side, fill with hydraulic oil and install it by hand until oil drains out on the high pressure side.
Hose supports and hoses must be free of oil and grease before installation.
Secure all hose connections with new hose clamps. Refer to the Parts information.
Check the ribbed belt pulley alignment after replacing the power steering pump. Refer to the appropriate Service Information .
-- Install the ribbed belts. Refer to the appropriate Service Information .
-- Bleed the steering. Refer to STEERING, BLEEDING AFTER REPLACING .
-- Check the steering for leaks. Refer to STEERING, CHECKING FOR LEAKS .
-- Clean oiled places in engine compartment.
