Overview - Rear Level Control System Sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

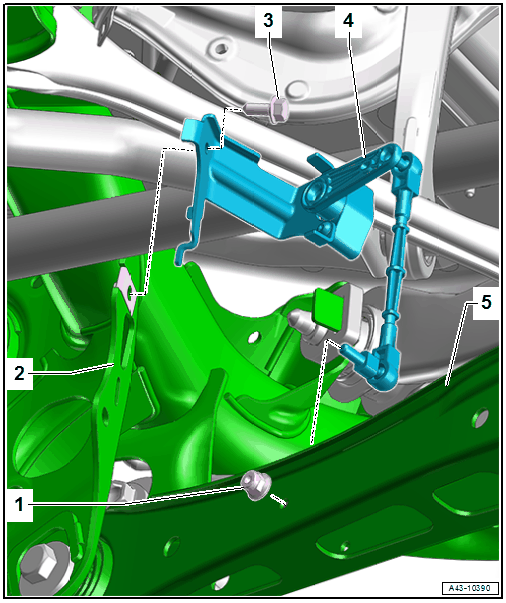

- Nut
- 8 Nm
- Always replace after removing.
- Self-locking
- Bracket
- For the level control system sensor
- Bolt
- 8 Nm
- Rear Level Control System Sensor
- Left Rear Level Control System Sensor -G76-
- Right Rear Level Control System Sensor -G77-
- With coupling rod and retaining plate
- Installation position: sensor coupling rod points toward the rear
- Removing and Installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Rear Lower Transverse Link
