Front Fender, Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install the fender -1- so that it is free of tension.

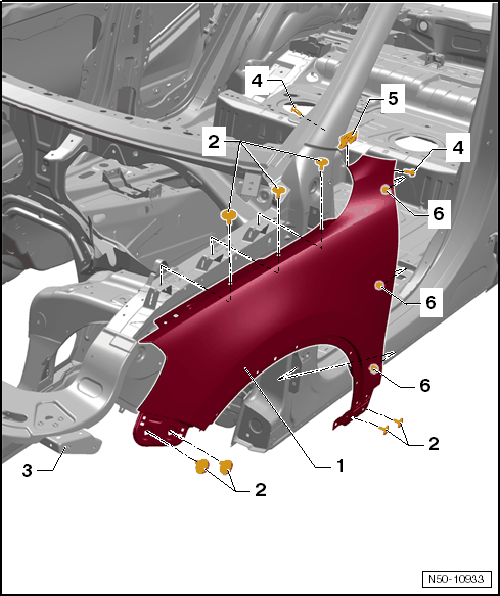

Fig 1: Identifying Fender -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the drip rail clamp -5-.

Install the fender -1- in reverse order of removal.

-- Tightening specifications for bolts -2- : 6 Nm.

-- Tightening specifications for bolts -4- : 6 Nm.

-- Tightening specifications for bolts -6- : 6 Nm.

-- Pay close attention to the parallel alignment and the gap dimensions. Refer to the appropriate service information.

Install with the fender brace loosened -3-.
