Section 105 (Front Suspension): General Description: Components
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

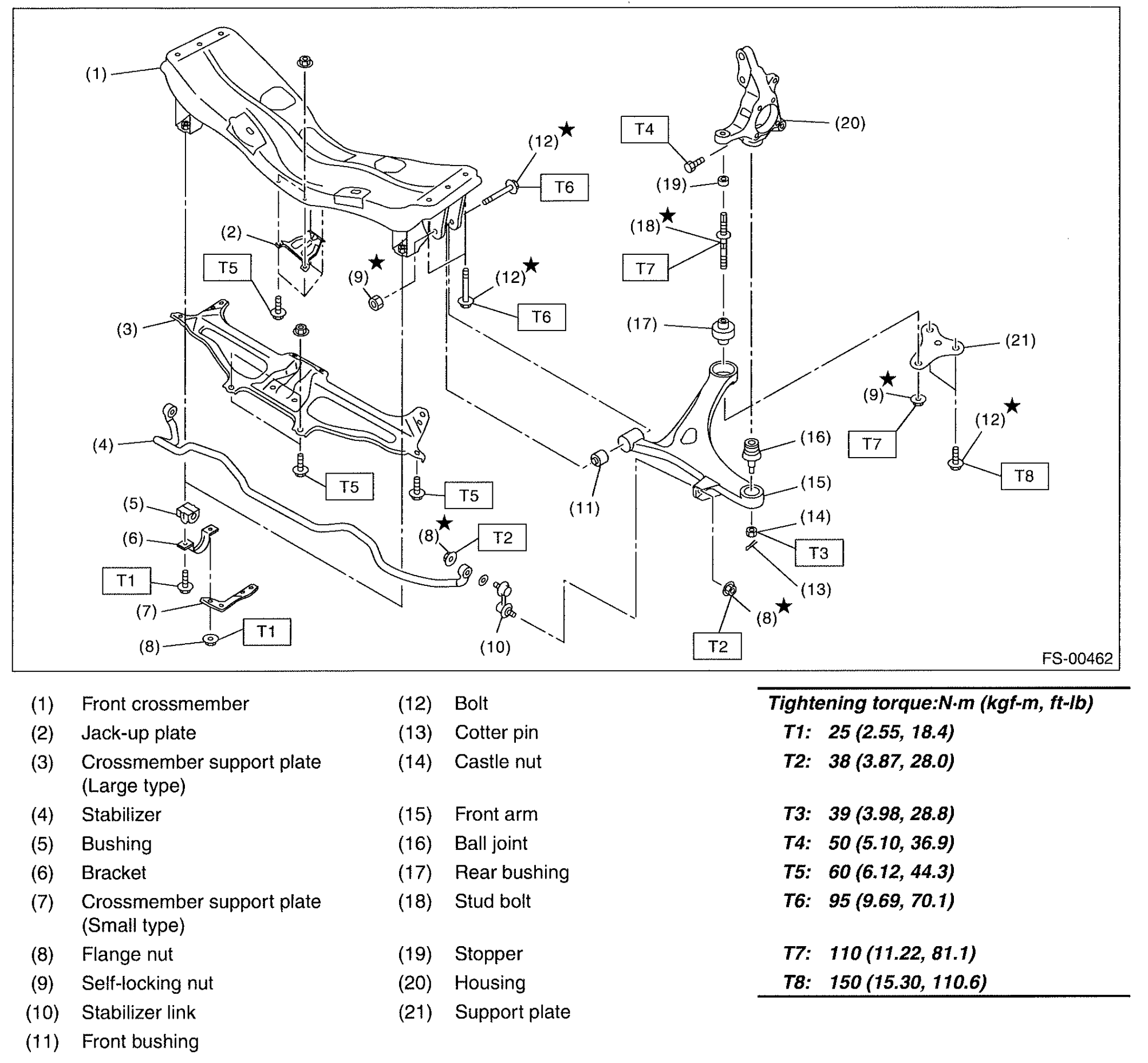

Fig 1: Exploded View Of Front Suspension With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.

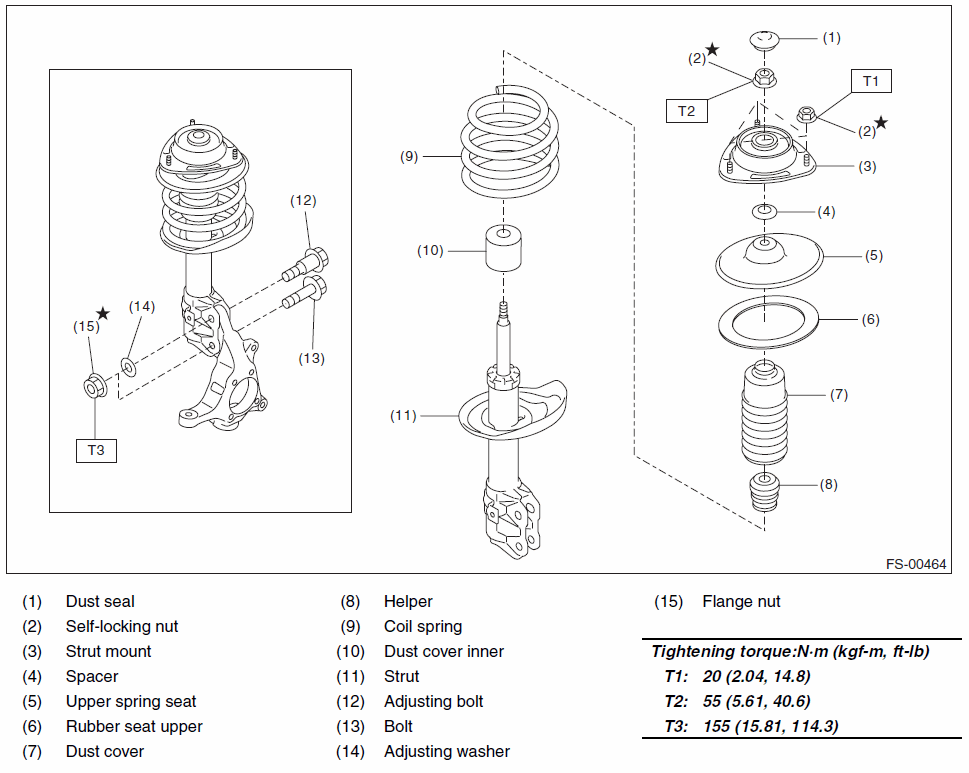

Fig 2: Exploded View Of Front Strut With Torque Specifications
