Auxiliary Climate Control Assembly: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 2.

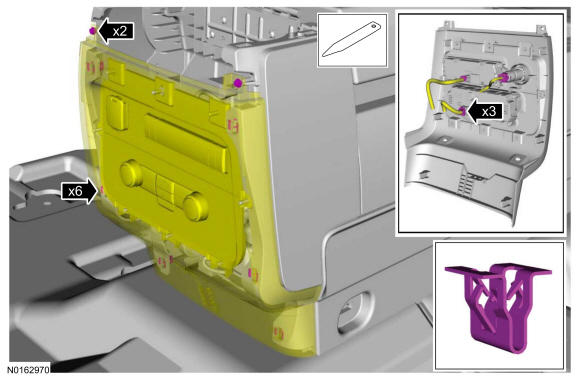

Remove the floor console rear finish panel.- Remove the floor console rear finish panel screws.
- Disengage the clips and remove the floor console rear finish panel.
- Disconnect the floor console rear harness electrical connectors.
- Remove the floor console rear finish panel.
- 3.

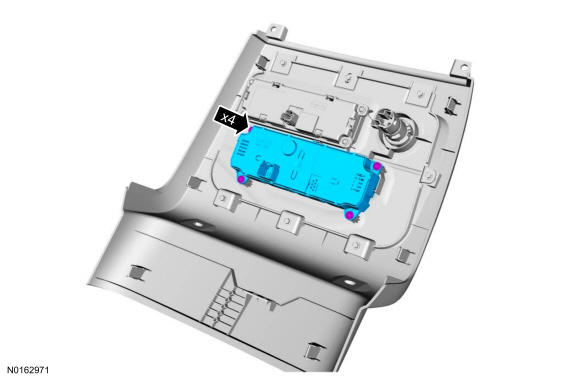

Remove the auxiliary climate control assembly screws and remove the auxiliary climate control assembly.
