Overview - HITACHI Generator

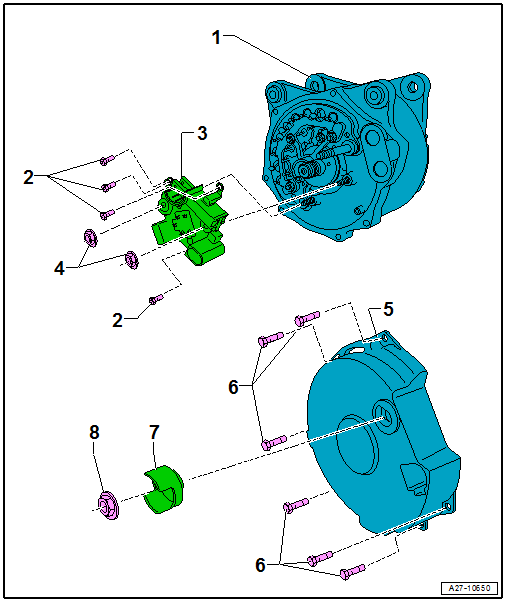

Fig 1: Exploded View Of Hitachi Generator Voltage Regulator

Courtesy of AUDI OF AMERICA, LLC

Generator
Screw
- 2 Nm
- Quantity: 4
Voltage Regulator
- Removing and Installing. Refer to VOLTAGE REGULATOR, REMOVING AND INSTALLING - HITACHI GENERATOR .
- Carbon brushes, checking. Refer to CARBON BRUSHES, CHECKING, HITACHI GENERATOR
Nut
- 4 Nm
- Quantity: 2
Cover
Screw
- 4 Nm
- Quantity: 6
Protective Cap
Nut
- 11 Nm
