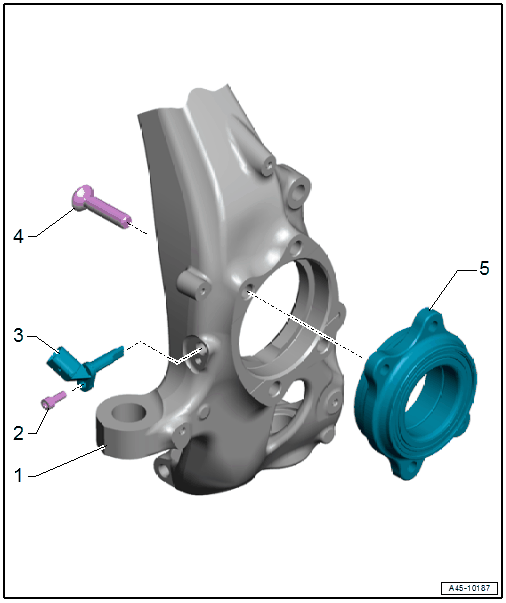

Overview - Front Axle Speed Sensor

Courtesy of AUDI OF AMERICA, LLC

Wheel Bearing Housing
Bolt
- 9 Nm
Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47-
- Removing and installing. Refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
Bolt
- Tightening specifications. Refer to the appropriate service information .
Wheel Bearing Housing
