Overview - Rear Window

Courtesy of AUDI OF AMERICA, LLC

Rear Window
- Two left and right locking pins at the top of the rear window will get cut during the removal.
- These pins are not needed when installing the rear window again.
- In this case, use adhesive tape to keep the rear window from sliding out when installing it.

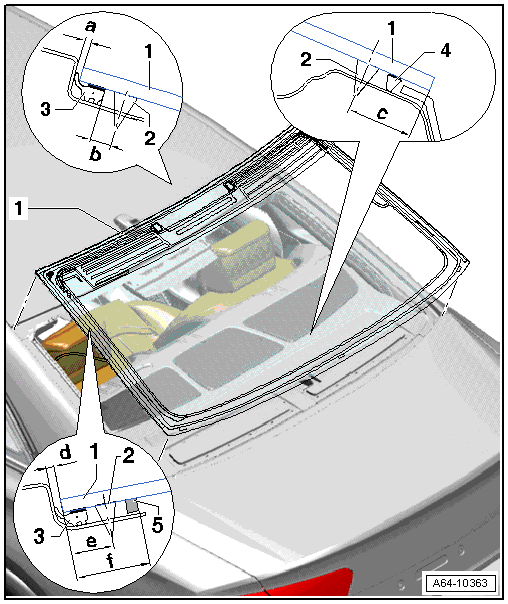

- Distance -a- to roof = 2 mm.
- Center the distance -d- to the >>D-pillar<<.
- Before removing, disconnect all the connectors and secure the contacts toward the inside to the middle of the window glass using adhesive tape.
Adhesive Bead
- Bead width = 8 mm ^{± 2 mm}
- Bead height = 12 mm ^{+ 2 mm}
- Distances to the window edge:
  - Dimension -b- = 7 mm
  - Dimension -c- = 27 mm
  - Dimension -e- = 16.5 mm
  - Dimension -f- = 28 mm
Gap Cover
NOTE:
The cutting wire must be laid under the gap cover.
Spacer
- Make three marks each on the top and bottom edges of the window edge.
Adhesive Stop Profile
- Distance to the edge of the window dimension f = 28 mm
- Bond the adhesive stop profile directly by the window defroster bus bar.
- Window adhesive must not come into contact with the rear window defroster bus bar.
