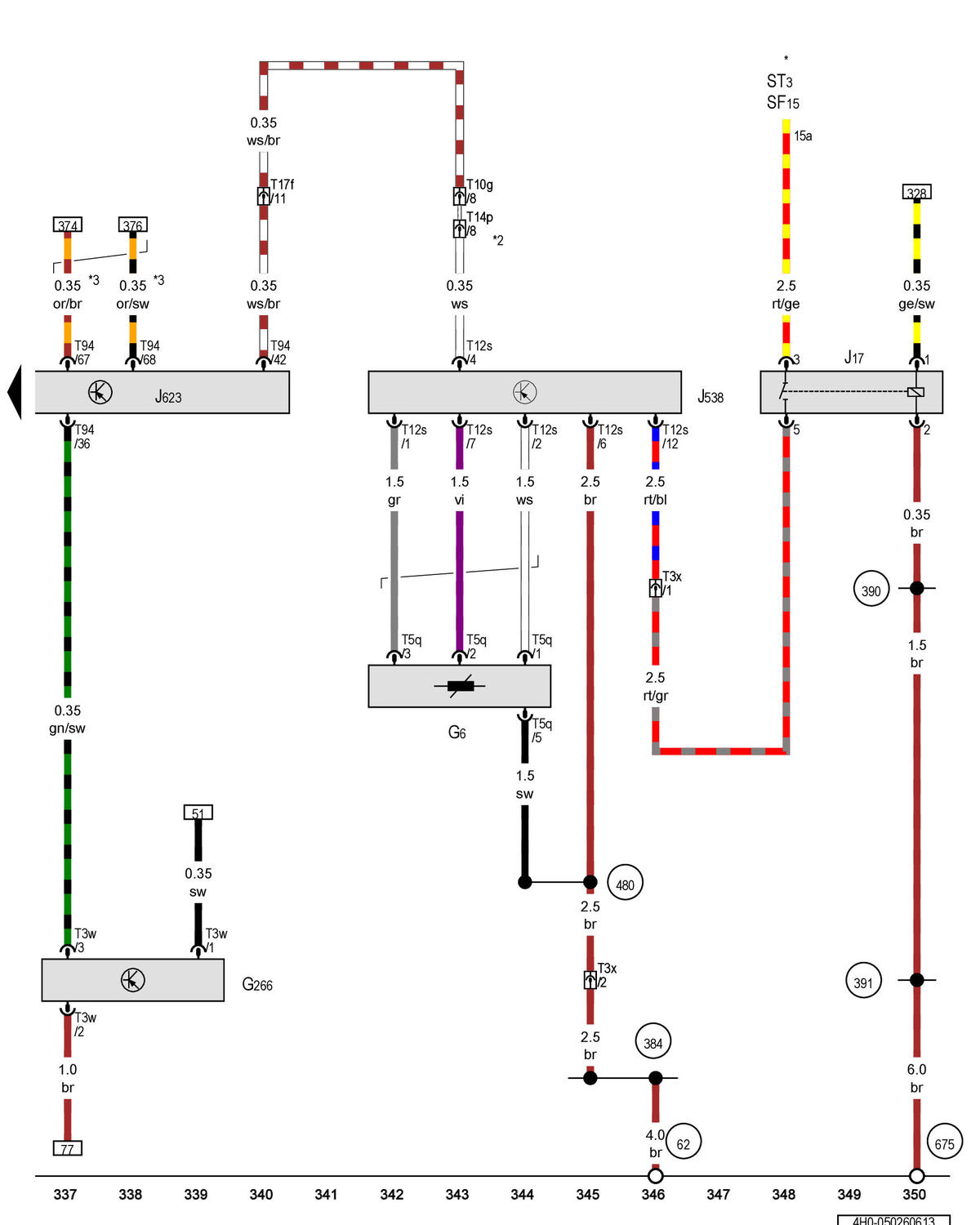

Transfer Fuel Pump, Oil Level Thermal Sensor, Fuel Pump Relay, Fuel Pump Control Module, Engine Control Module: Notes

GWW4H0-050260613

Courtesy of AUDI OF AMERICA, LLC
