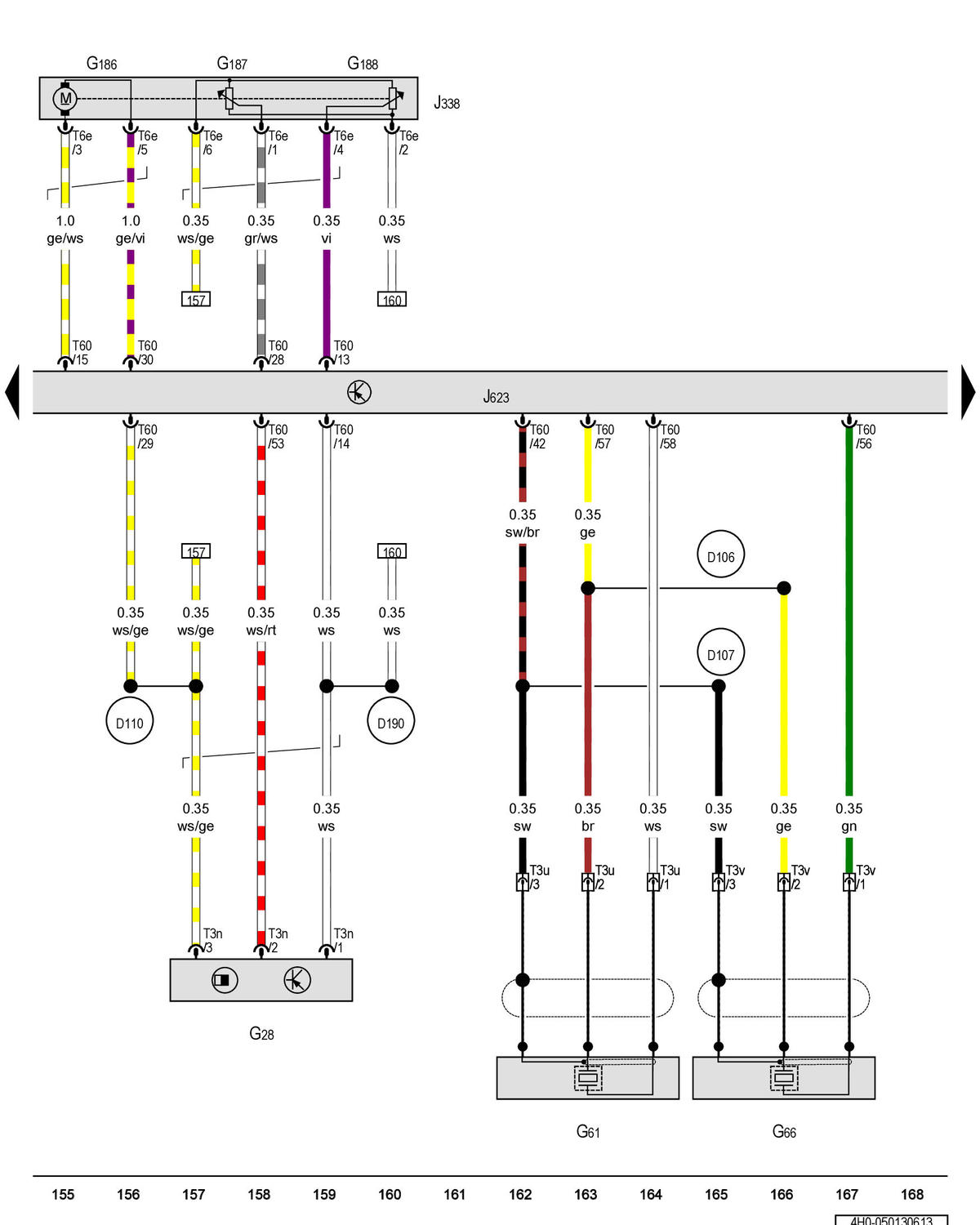

Engine Speed Sensor, Knock Sensor 1, Knock Sensor 2, Throttle Valve Control Module, Engine Control Module: Notes

GWW4H0-050130613

Courtesy of AUDI OF AMERICA, LLC
