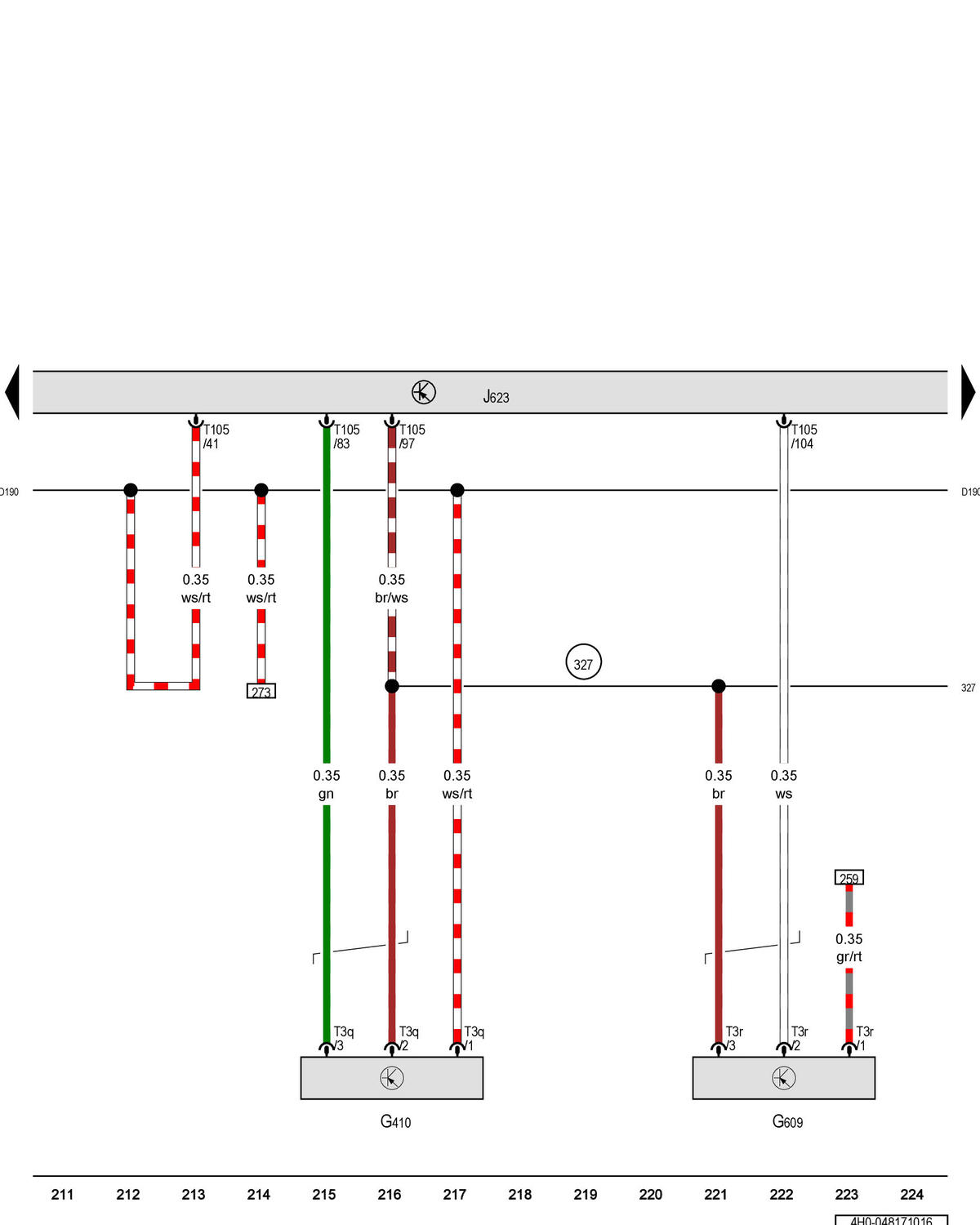

Low Fuel Pressure Sensor, Secondary Air Injection Sensor 1, Engine Control Module: Notes

GWW4H0-048171016

Courtesy of AUDI OF AMERICA, LLC
