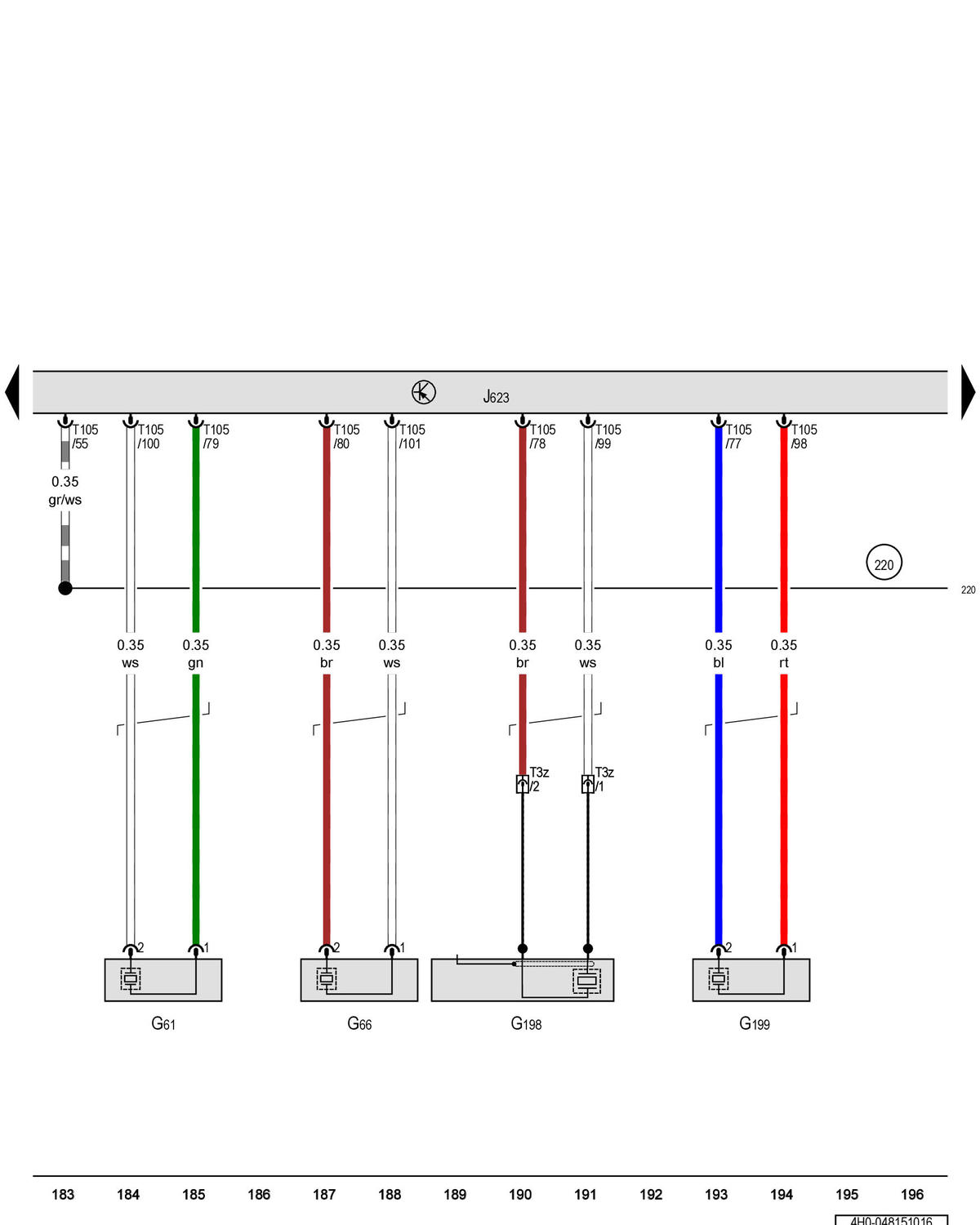

Knock Sensor 1, Knock Sensor 2, Knock Sensor 3, Knock Sensor 4, Engine Control Module: Notes

GWW4H0-048151016

Courtesy of AUDI OF AMERICA, LLC
