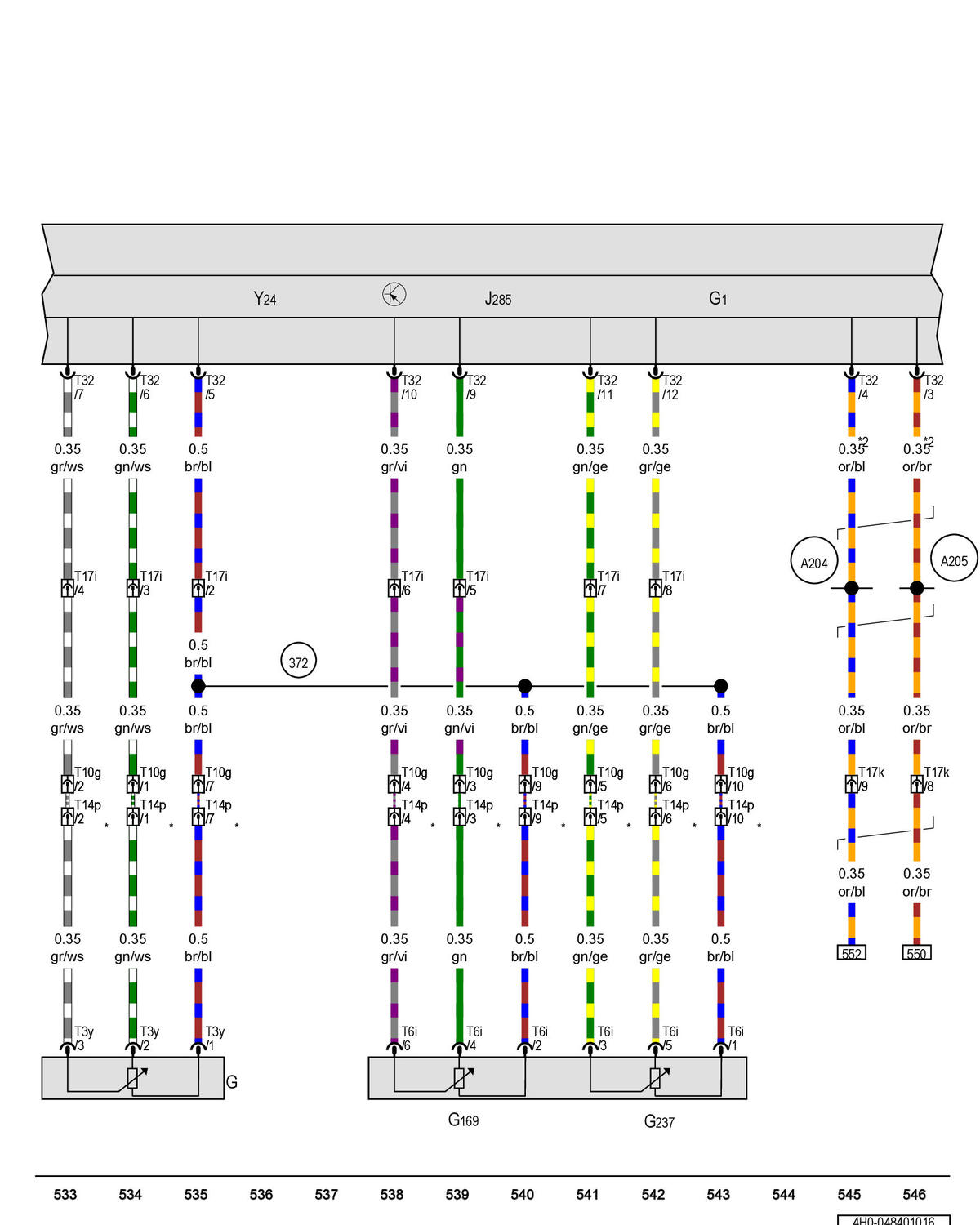

Fuel Gauge, Fuel Level Sensor 2, Fuel Level Sensor 3, Instrument Cluster Control Module: Notes

GWW4H0-048401016

Courtesy of AUDI OF AMERICA, LLC
