Home >> Audi >> 2016 >> S8 Base >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Diagram [CEUA,CEUE,CGTA,CTFA,CTGA,CTGD,CTGF,DDTA] >> Wiring Diagram(S) >> Engine Speed Sensor, Intake Manifold Runner Position Sensor, Intake Manifold Runner Position Sensor 2, Engine Control Module >> Notes

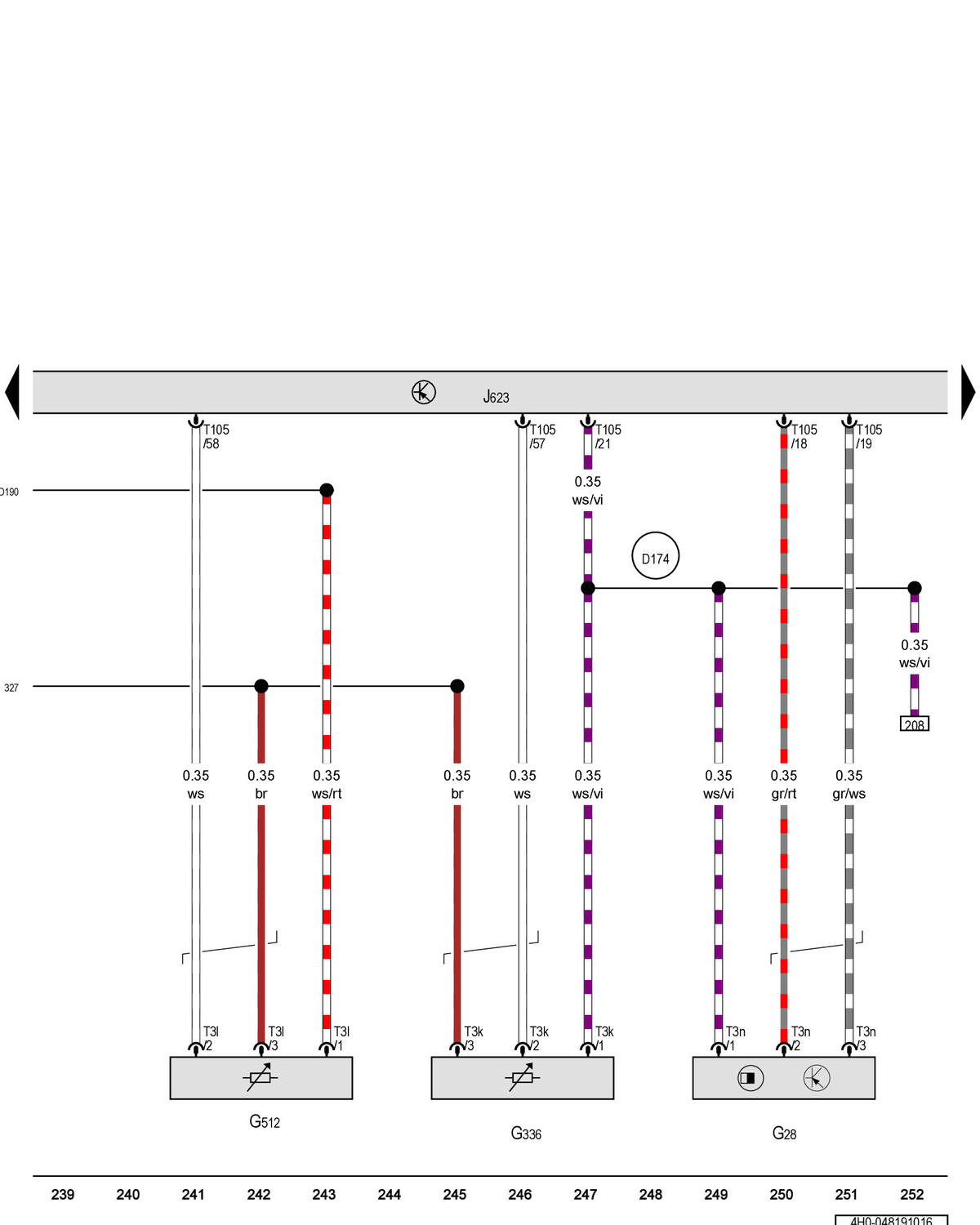

Engine Speed Sensor, Intake Manifold Runner Position Sensor, Intake Manifold Runner Position Sensor 2, Engine Control Module: Notes

GWW4H0-048191016

Courtesy of AUDI OF AMERICA, LLC
