Testing Values and Process Specifications Table:

Service:	Fluid Level Specified Value:
Delivery service	Fluid level at the MAX mark.
Change brake fluid	Fluid level between the MAX and MIN mark, consistent with the wear condition of the brake pads.

The leak test for the brake system is a repair procedure and should be charged separately.

Procedure:

-- Check the brake fluid level based on the markings -arrows- in the brake fluid reservoir.

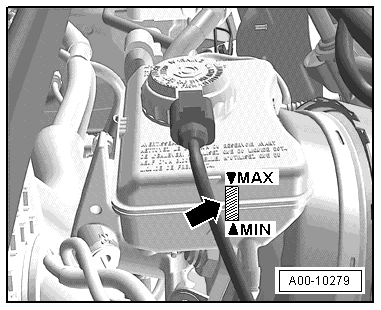

Fig 1: Brake Fluid Reservoir Level MIN & Max Marks

Courtesy of AUDI OF AMERICA, LLC

-- Perform the following actions depending on the test result:

Fluid level:	Evaluation / Action:
Over the MAX mark	Extract the brake fluid.
Under the specified level	Perform a leak test for the brake system. Refer to CHECKING FOR LEAKS (BRAKES) .

NOTE:

Due to wear and the automatic adjustment of the brake pads while driving, the brake fluid level lowers.
