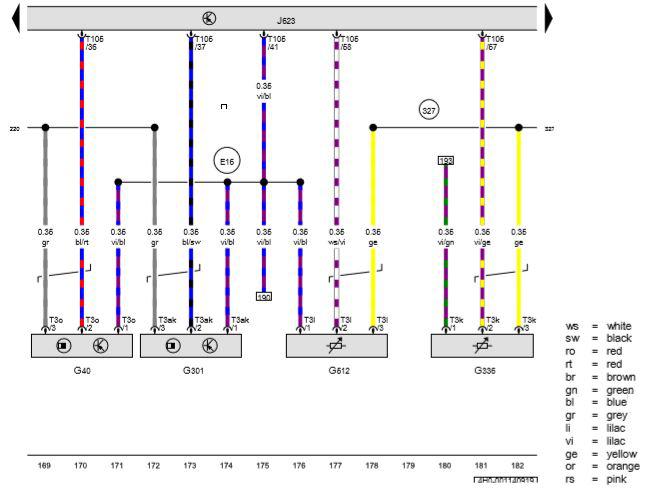

Camshaft Position Sensor, Camshaft Position Sensor 4, Intake Manifold Runner Position Sensor, Intake Manifold Runner Position Sensor 2, Engine Control Module: Notes

GWW4H0-001140412Courtesy of AUDI OF AMERICA, LLC
