Install the Guide

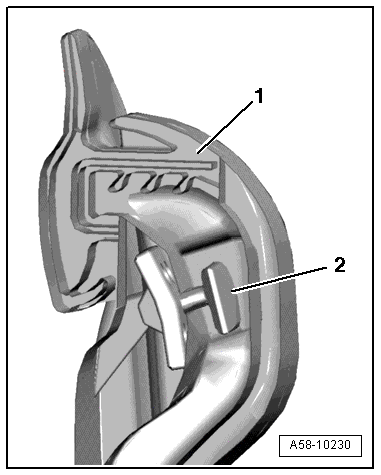

Fig 1: Installing Guide

GWWA58-10230

Courtesy of AUDI OF AMERICA, LLC

-- Push the guide -1- and the clip -2- onto the top of the B-pillar -arrow- as illustrated above.
