Bracket, Removing And Installing: Installing

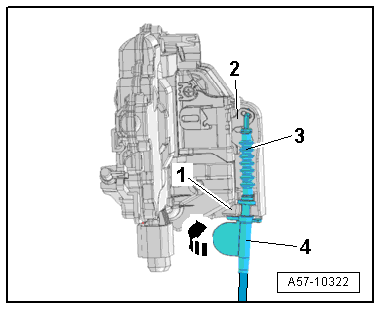

Fig 1: Actuating Link, Installation

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Engage the actuating link -3- in the door lock operating lever -2-.

-- Insert the actuating link in the cable bracket -1- and rotate the lever -4- 90° in direction of -arrow-.

• The lever must engage audibly with the locking tab on the cable bracket.

-- Install the door lock cover DOOR LOCK COVER, REMOVING AND INSTALLING .

-- Install the inner door panel cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

-- Install the door trim panel. Refer to Front Door Trim Panel, Removing and Installing .

-- Install the exterior door handle. Refer to EXTERIOR DOOR HANDLE, REMOVING AND INSTALLING .
