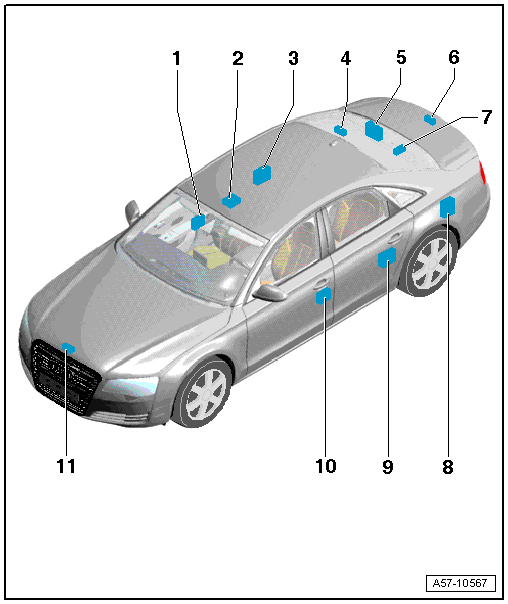

Overview - Central Locking
- Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Right Rear Door Control Module -J389-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Fuel Filler Door Unlock -V 155-
- Removing and installing. Refer to Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Rear Lid Unlock Motor -V139-
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING .
- Rear Lid Control Module -J605-
- Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Left Rear Door Control Module -J388-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Engine Hood Contact Switch -F266-
