Rearview Camera System Control Module - J772- CONNECTORS, THROUGH MY 2013: Notes

Rearview Camera System Control Module J772

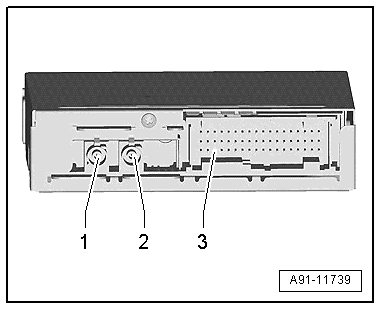

Fig 1: Identifying Rear View Camera System Control Module -J772-

Courtesy of AUDI OF AMERICA, LLC

CVBS input, 2-Pin Connector -T2af- from Rearview Camera -R189-
CVBS OUT, 2-Pin Connector -T2ae- to Information Electronics Control Module 1 -J794-
54-Pin Connector -T54a-

NOTE:

Unlisted connector terminals are not used.
