Peripheral Camera Control Module -J928- CONNECTOR ASSIGNMENT: Notes

Peripheral Camera Control Module J928

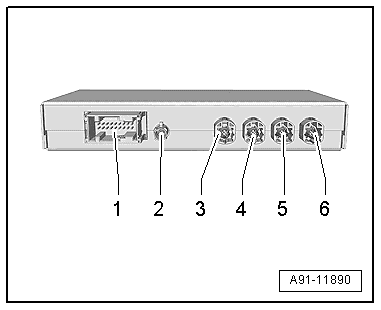

Fig 1: Identifying Peripheral Camera Control Module -J928-

Courtesy of AUDI OF AMERICA, LLC

1. 18-Pin Connector -T18f-
2. CVBS OUT, 2-Pin Connector -T2lt- to the Information Electronics Control Module 1 -J794-
3. CVBS input, 5-Pin Connector -T5av- from the Left Peripheral Camera -R244-
4. CVBS input 5-Pin Connector -T5aw- from the Right Peripheral Camera -R245-
5. CVBS input, 5-Pin Connector -T5ax- from the Front Peripheral Camera -R243-
6. CVBS input, 5-Pin Connector -T5ay- from the Rear Peripheral Camera -R246-

1 - 18-Pin Connector T18F

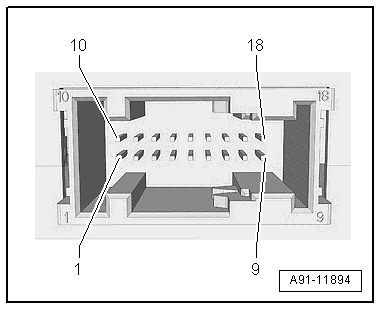

Fig 2: 1 - 18-pin connector (T18f)

Courtesy of AUDI OF AMERICA, LLC

1 -  Terminal 30

2 -  CAN bus high,

10 -  CAN bus low, Comfort

12 -  Terminal 31
