Component Location Overview - Infrared System

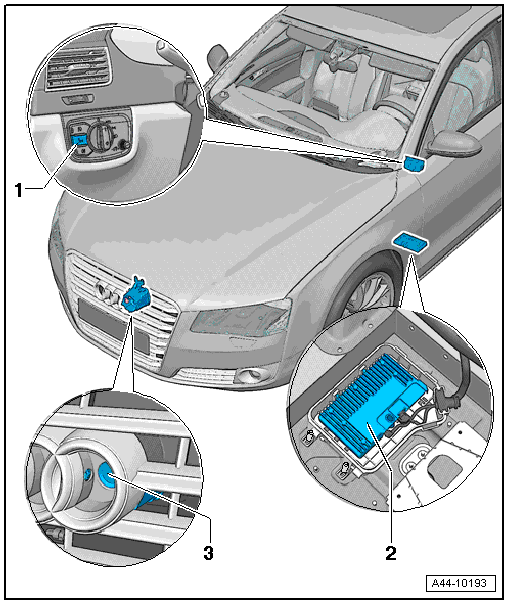

Fig 1: Component Location Overview Of Infrared System

Courtesy of AUDI OF AMERICA, LLC

1. Light Switch -E1- with Night Vision System Button -E680-
   • Removing and installing. Refer to LIGHT SWITCH -E1-, REMOVING AND INSTALLING
2. Night Vision System Control Module -J853-
   • Component location in front left footwell
   • Removing and installing. Refer to NIGHT VISION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
3. Night Vision System Camera -R212-
   • Removing and installing. Refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING .
   • Calibration. Refer to INFRARED SYSTEM, CALIBRATING .
