COMPONENT LOCATION OVERVIEW - DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, Image Processing Control Module -J851-

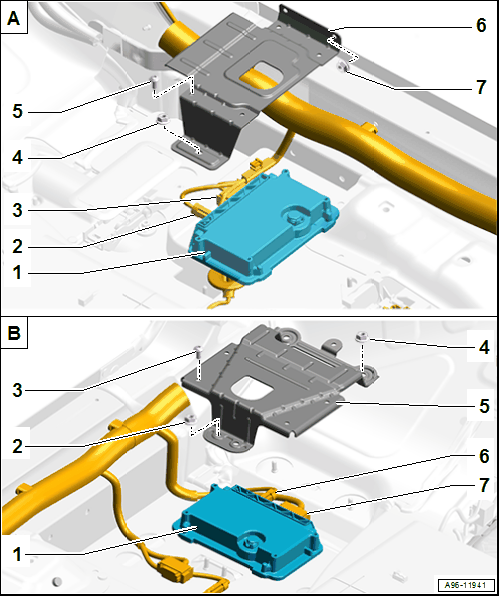

Fig 1: Identifying Image Processing Control Module -J851- Components

Courtesy of AUDI OF AMERICA, LLC

1. A -  Image Processing Control Module -J851-, LHD
2. 1 -  Image Processing Control Module -J851-
   • Removing and Installing. Refer to Image Processing Control Module -J851-, REMOVING AND INSTALLING .
3. 2 -  Antenna Wire
4. 3 -  Connector
5. 4 -  Nut
   • 2.5 Nm
6. 5 -  Nut
   • 2.5 Nm
   • Quantity: 2
7. 6 -  Bracket
   • For the Image Processing Control Module -J851-
8. 7 -  Screw
   • 6 Nm
   • Quantity: 4
9. B -  Image Processing Control Module -J851-, RHD
10. 1 -  Image Processing Control Module -J851-
    • Removing and Installing. Refer to Image Processing Control Module -J851-, REMOVING AND INSTALLING, RHD .
11. 2 -  Nut
    • 2.5 Nm
    • Quantity: 2
12. 3 -  Screw
    • 6 Nm
    • Quantity: 4
13. 4 -  Nut
    • 2.5 Nm
    • Quantity: 2
14. 5 -  Bracket
    • For the Image Processing Control Module -J851-
15. 6 -  Antenna Wire
16. 7 -  Connector
