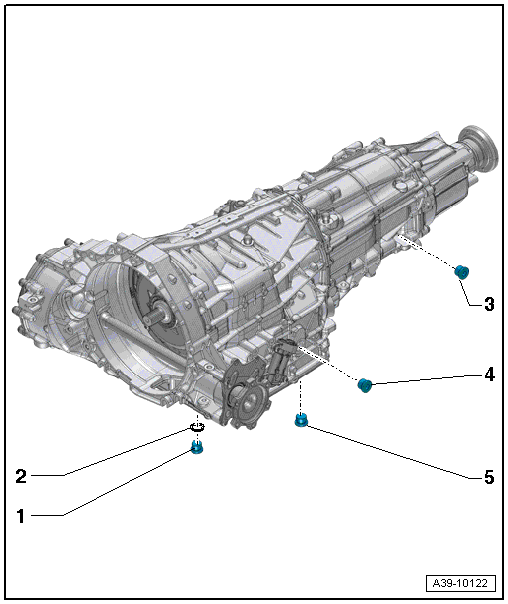

ATF Drain Plug, Fill Plug And Check Plug Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. ATF Drain Plug
   • 45 Nm
2. Seal
   • For the ATF drain plug
   • Replacing
3. Transmission Fluid (MTF) fill and Check Plug
   • Tightening specification 45 Nm
   • Inside the manual transmission, front final drive and transfer case
4. ATF Fill and Check Plug
   • 45 Nm
5. Transmission Fluid (MTF) Drain Plug
   • Drain plug tightening specification 45 Nm
   • Inside the manual transmission, front final drive and transfer case
   • Depending on the date of manufacture, Transmission Fluid Temperature Sensor 2 -G754- may also serve as the transmission fluid drain plug; tightening specification for Removing and installing. Refer to Transmission Fluid Temperature Sensor 2 -G754-, REMOVING AND INSTALLING .
