Overview - Air Routing And Air Distribution

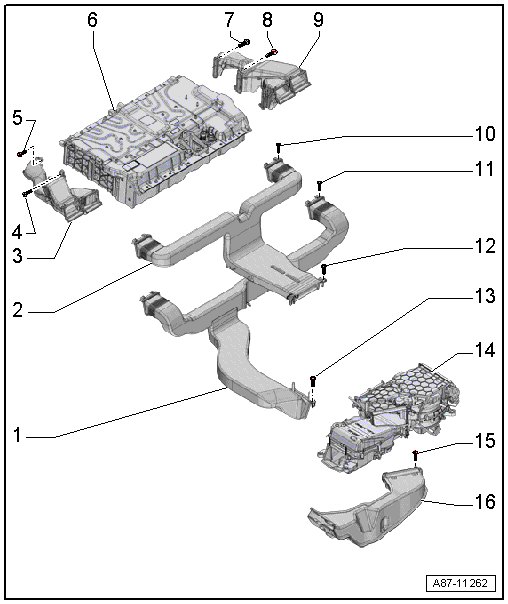

Fig 1: Exploded View Of Air Routing And Air Distribution

Courtesy of AUDI OF AMERICA, LLC

1. Inlet Air Duct for the Traction Battery
   • If the retainer no longer holds or a tab breaks, the air guide may also be secured to the battery cooling module and to the air guides using a bolt.
   • Removing and Installing. Refer to Traction Battery -A2- INLET AIR GUIDE, REMOVING AND INSTALLING .
2. Front Outlet Air Guide for the Traction Battery
   • If the retainer no longer holds or a tab breaks, the air guide may also be secured to the battery cooling module using a bolt.
   • Removing and Installing. Refer to Traction Battery -A2- FRONT OUTLET AIR GUIDE, REMOVING AND INSTALLING .
3. Left Air Guide
   • Use an additional bolt to attach the air guide if the retainers no long hold. Remove the traction battery to do this .
   • Removing and Installing. Refer to LEFT AND RIGHT AIR GUIDES ON Traction Battery -A2-, REMOVING AND INSTALLING .
4. Bolt
   • 2 Nm
   • Quantity: 2
5. Bolt
   • Use an additional bolt to attach the air guide if the retainers no longer hold. Remove the traction battery to do this .
6. Traction Battery -A2-
   • Work on the Traction Battery -A2- is the same as for removing and installing it in the sense that the vehicle must be turned off and disabled, etc .
7. Bolt
   • Use an additional bolt to attach the air guide if the retainers no longer hold.
8. Bolt
   • 2 Nm
   • Quantity: 2
9. Right Air Guide
   • Use an additional bolt to attach the air guide if the retainers no long hold. Remove the traction battery to do this .
   • Removing and Installing. Refer to LEFT AND RIGHT AIR GUIDES ON Traction Battery -A2-, REMOVING AND INSTALLING .
10. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
11. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
12. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
13. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
14. Battery Cooling Module
15. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
16. Rear Outlet Air Guide for the Traction Battery
    • Use several bolts to attach the air guide to the battery cooling module if one of the tabs breaks off.
    • Removing and Installing. Refer to Traction Battery -A2- REAR OUTLET AIR GUIDE, REMOVING AND INSTALLING .
