Battery Cooling Module Condensation Water Drain, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Bring the battery cooling module in the service position. Refer to BATTERY COOLING MODULE, BRINGING INTO SERVICE POSITION .

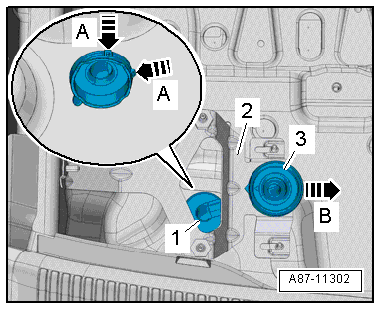

-- Carefully release the plastic ring tabs -arrows A- and press the condensation water drain -1- into the battery cavity.

-- Remove the condensation water drain -3- out of the bracket -2- -arrow B-.
