Passenger Compartment Forced Air Extraction, Removing And Installing: Installing
Installation is done is reverse order, observe the following:

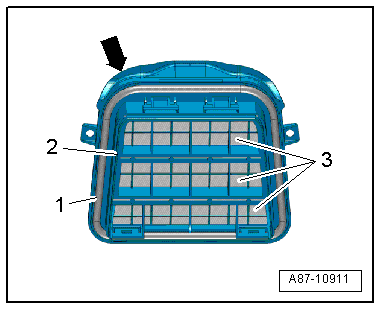

-- Check the seal -1- for damages.
-- The ventilation frames -2- can only be installed in one position to ensure the sealing lips -3- close correctly.
- The larger radius -arrow- is at the top.
-- When installing, press the ventilation frame into the opening on the body until all the retaining tabs engage securely.
-- Reattach the cover on the vent frames.
