FUSE FOR Electrical A/C Compressor -V470-
The power for the Electrical A/C Compressor -V470- is supplied via a fuse that is installed in the Electric Drive Power and Control Electronics -JX1-.
Check the power supply for the Electrical A/C Compressor -V470- using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
Audi A6 Hybrid
The fuse for the Electrical A/C Compressor -V470- is seated inside the Electric Drive Power and Control Electronics -JX1- and the Parts information.
-- If necessary, replace the fuse or the electric drive power and control electronics .
Audi A6 E-Tron

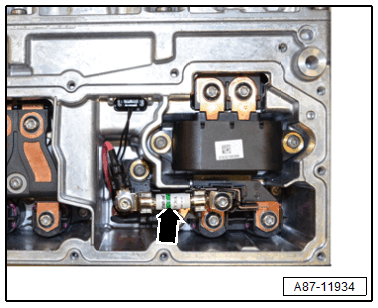

The retainer -arrow- for the Electrical A/C Compressor -V470- sits in the Electric Drive Power and Control Electronics -JX1-, and can currently not be replaced separately (introduction of retainer as replacement part is TBD).
-- If necessary, replace the retainer or the electric drive power and control electronics .
