Headrest Guide, Removing And Installing: Removing
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the Engine/Transmission Holder - Seat Repair Fixture :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

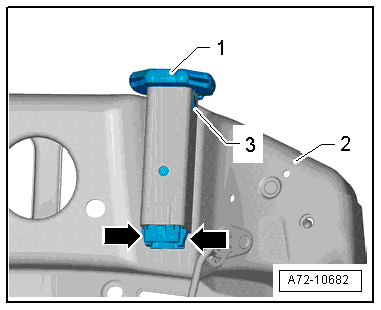

Right Headrest Guide:
-- Press retaining tabs in -arrows- and simultaneously pull the headrest guide -1- out of the backrest frame -2-.

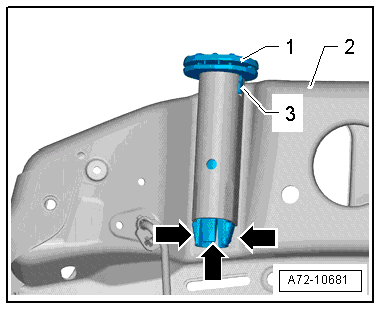

Left Headrest Guide:
-- Press in retaining tab -arrows- and simultaneously pull headrest guide -1- out of the backrest frame -2-.
