Connector Assignments

Antenna Amplifier 2 -R111-

Courtesy of AUDI OF AMERICA, LLC

1. Radio Antenna 2 -R93- (AM/FM1)/Central Locking and Anti-Theft Alarm System Antenna -R47- (CLS)
2. AM/FM1 connection to the Radio -R- /Information Electronics Control Module 1 -J794-
3. CLS connection to Comfort System Central Control Module -J393-

Courtesy of AUDI OF AMERICA, LLC

1. AM
2. FM1/Diagnosis
3. CLS

Antenna Amplifier -R24-

Courtesy of AUDI OF AMERICA, LLC

1. Antenna -R11- (FM2) /TV Antenna 1 -R55- (TV1)
2. FM2 connection to the Radio -R- /Information Electronics Control Module 1 -J794-
3. TV1 connection to the TV Tuner -R78-

Courtesy of AUDI OF AMERICA, LLC

1. Not Assigned
2. FM2/TV1/diagnosis
3. Not Assigned

Antenna Amplifier 3 -R112-

Courtesy of AUDI OF AMERICA, LLC

1. Digital Radio Antenna -R183- (DAB) /TV Antenna 2 -R56- (TV2)
2. TV2 connection to the TV Tuner -R78-
3. DAB connection to the Radio -R- /Information Electronics Control Module 1 -J794-

Courtesy of AUDI OF AMERICA, LLC

1. DAB
2. TV2/Diagnostic
3. Not Assigned

Antenna Amplifier 4 -R113-

Courtesy of AUDI OF AMERICA, LLC

1. TV Antenna 3 -R57-, TV3
2. TV3 connection to the TV Tuner -R78-
3. Not Assigned

Courtesy of AUDI OF AMERICA, LLC

1. Not Assigned
2. TV3/diagnosis
3. Not Assigned

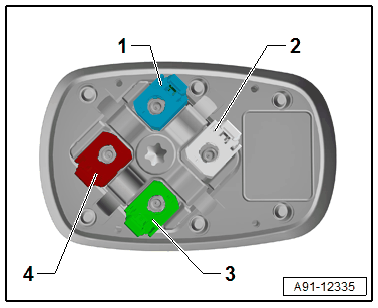

Roof Antenna -R216-

Courtesy of AUDI OF AMERICA, LLC

1. GPS Antenna -R50-, blue
2. Not assigned, white
3. Satellite Antenna -R170- /Auxiliary Heater Antenna -R182-, green
4. Telephone Antenna -R65- /LTE Antenna 1 -R297-, burgundy
