Subwoofer -R211-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the luggage compartment floor.

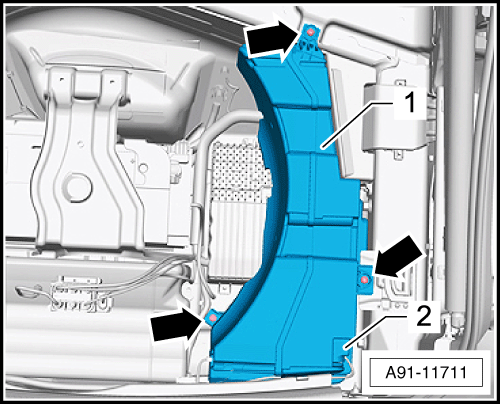

-- Remove the screws and nuts -arrows- on the Subwoofer -R211- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2- from the Subwoofer -R211- -1-.

-- Remove the Subwoofer -R211- -1- upward.
