Calibration Tool:VAS6350, INSTALLING AND ALIGNING

Special Tools And Workshop Equipment Required

Calibration Tool :VAS6350
Vehicle Diagnostic Tester

After performing service work on the vehicle, it may be necessary to calibrate the rearview camera system. In detail, this is the case after:

Rearview Camera -R189- Removal and Installation
Replacing the Rearview Camera System Control Module -J772- ; only for vehicles with Rearview Camera System Control Module -J772-
Collision repairs on rear lid
Changes to the axle alignment on the rear axle

Calibration Requirements

The camera lens must be clean.
The vehicle must be standing on a firm and level surface.
There must be sufficient open space around the vehicle.
The parking brake must be set.
The steering wheel must be in the 0 position and the wheels must be straight.
All doors and the rear lid must be closed.
No one should be in the vehicle.
The vehicle must not be loaded (curb weight).
Connect the battery charger.
Before each calibration: turn on the ignition.

The Calibration Tool :VAS6350 consists of the following parts:

Calibration Tool - Wheel Center Mountings :VAS6350/1
Calibration Tool - Spacing Laser :VAS6350/2
Calibration Tool - Linear Laser :VAS6350/3

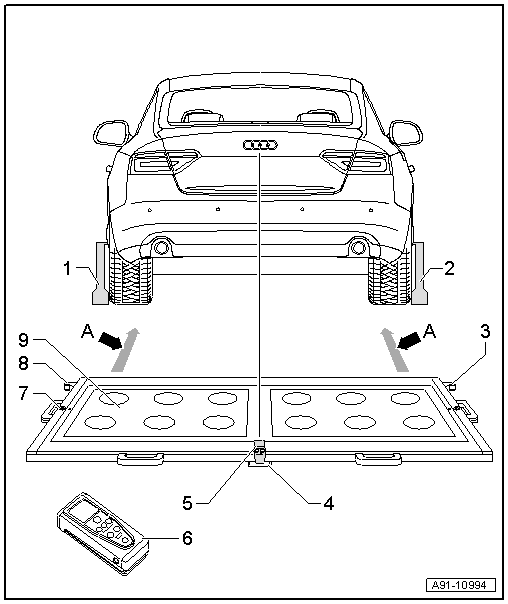

Installed Calibration Tool :VAS6350 Overview

Courtesy of AUDI OF AMERICA, LLC

Calibration Tool - Wheel Center Mountings :VAS6350/1
Calibration Tool - Wheel Center Mountings :VAS6350/1
Right Angle Bracket
- Calibration Tool - Spacing Laser :VAS6350/2 mount
Plastic Foot
- Three on underside of calibration platform
- Adjustable for aligning horizontal position of calibration platform
Calibration Tool - Linear Laser :VAS6350/3
- On the calibration board
- Switching on and off. Refer to operating instructions.
Calibration Tool - Spacing Laser :VAS6350/2
- On the calibration board
- Notes on operation. Refer to operating instructions.
Level
- On the calibration board
- for checking the horizontal position
Left Angle Bracket
- Calibration Tool - Spacing Laser :VAS6350/2 mount
Calibration Board
- Between the mounts on the calibration board and the Calibration Tool - Wheel Center Mountings :VAS6350/1 -dimension A- 1.47 m through 1.90 m

Calibration Board Alignment

-- Position the calibration platform behind the vehicle at a distance of 1.47 m to 1.90 m to the rear wheels, see dimension -A- in the illustration Calibration Tool .

-- Bring the :VAS6350 into a horizontal position.

-- To do so, twist plastic feet under calibration device so that air bubble in level is located exactly in the center of the indicator -arrow-.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Make sure light does not reflect off the calibration platform.

Reflections affect the Rearview Camera -R189- and may make it impossible to perform the calibration.

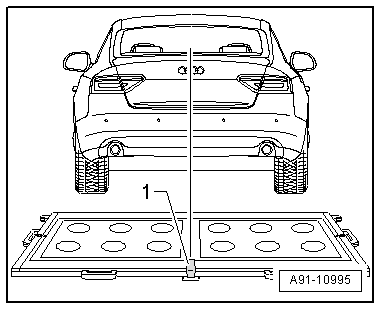

-- Switch on the :VAS6350/3A -1- on the calibration board and adjust the entire :VAS6350 so that the laser beam hits the center of vehicle rear above the Audi rings.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the Audi rings are centered on the rear. Correct the laser beam accordingly.

Continue calibrating the Rearview Camera -R189-. Refer to REARVIEW CAMERA, CALIBRATING .
