Rearview Camera -R189-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.

-- Remove the lower rear lid trim panel. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

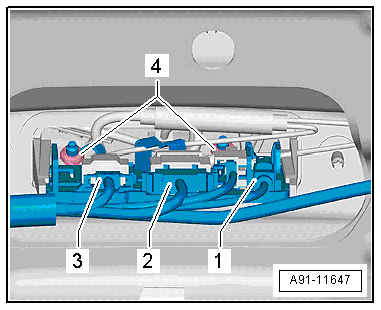

-- Release and disconnect the connectors -1, 2, and 3- in the rear lid.

Courtesy of AUDI OF AMERICA, LLC

The Rearview Camera -R189- is firmly attached to the handle button.

-- Remove the nuts -4-.

-- Pull the handle button with the Rearview Camera -R189- out of the retainer in the rear lid.
