Emergency Module Antenna, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

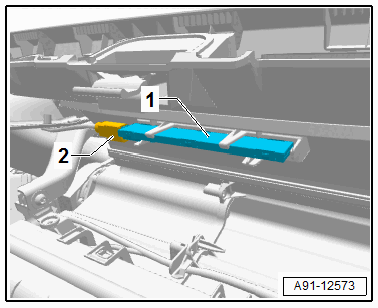

GWWA91-12573Courtesy of AUDI OF AMERICA, LLC

-- Remove the Emergency Module Antenna -R263- -1- from the mount.
