Garage Door Opener Control Module, Removing And Installing: Removing

-- Remove the lock carrier cover. Refer to FRONT BUMPER, ATTACHMENTS, REMOVING AND INSTALLING .

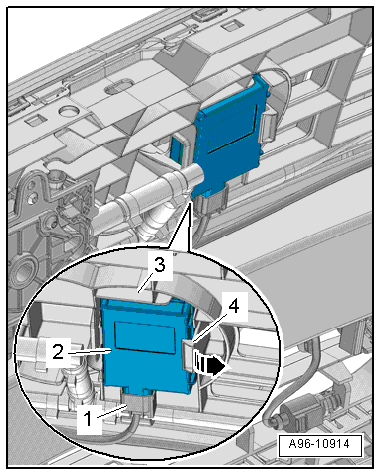

-- Release the tab -4- in direction of -arrow- and remove control module -2- from mount -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
