Component Location Overview - Abs/Esp
Courtesy of AUDI OF AMERICA, LLC

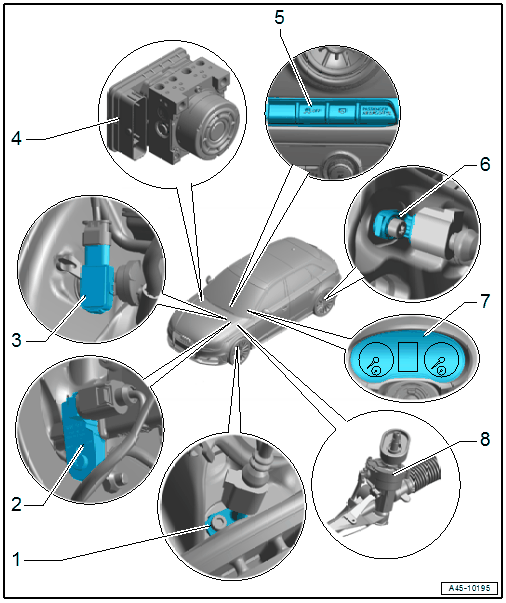

- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester. Refer to Vehicle Diagnostic Tester.
- Refer to OVERVIEW - FRONT AXLE SPEED SENSOR
- Brake Lamp Switch -F- /Brake Pedal Switch -F63-
- Vacuum Sensor -G608-
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Component location: in the right rear engine compartment
- With ABS Hydraulic Pump -V64- ; the hydraulic pump cannot be replaced separately
- Components in the ABS Control Module -J104- :
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Brake Pressure Sensor 1 -G201-
- Longitudinal Acceleration Sensor -G251-
- The components cannot be replaced separately.
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester. Refer to Vehicle Diagnostic Tester.
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- ASR/ESP Button -E256-
- Component location: in the center console
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester. Refer to Vehicle Diagnostic Tester.
- Removing and Installing. Refer to OVERVIEW - CENTER CONSOLE CONTROLS
.
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester. Refer to Vehicle Diagnostic Tester.
- Refer to OVERVIEW - REAR AXLE SPEED SENSOR
- Instrument Cluster
- With ASR/ESP Indicator Lamp -K155-
- The indicator lamp cannot be replaced separately.
- Steering Gear
- With Steering Angle Sensor -G85-
- The steering angle sensor cannot be replaced separately
