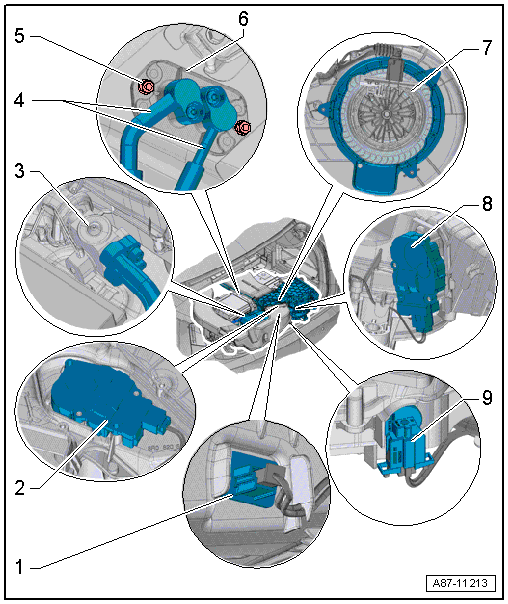

Component Location Overview - Components Inside Rear Passenger Compartment

NOTE:

Refer to AIR INTAKE AND OUTLET OPENINGS

Refer to OVERVIEW - BATTERY COOLING MODULE

Courtesy of AUDI OF AMERICA, LLC

1. Temperature Sensor after Hybrid Battery Evaporator -G757-
   • Overview. Refer to OVERVIEW - BATTERY COOLING MODULE .
2. Hybrid Battery Recirculation Door Positioning Motor 1 -V479- :
   • Overview. Refer to OVERVIEW - BATTERY COOLING MODULE .
3. Expansion Valve with Hybrid Battery Refrigerant Shut-Off Valve 2 -N517-
   • Overview. Refer to OVERVIEW - BATTERY COOLING MODULE .
4. Refrigerant Lines
   • To the Hybrid Battery Refrigerant Shut-Off Valve 2 -N517-
   • Overview. Refer to OVERVIEW - REFRIGERANT LINES, FRONT REFRIGERANT LINES, VEHICLES WITH HIGH VOLTAGE SYSTEM .
5. Nut
   • Quantity: 2
   • Tightening specification. Refer to OVERVIEW - REFRIGERANT LINES, FRONT REFRIGERANT LINES, VEHICLES WITH HIGH VOLTAGE SYSTEM .
6. Pass-Through for the Refrigerant Lines in the Luggage Compartment
   • Overview. Refer to OVERVIEW - REFRIGERANT LINES, FRONT REFRIGERANT LINES, VEHICLES WITH HIGH VOLTAGE SYSTEM .
7. Battery Fan 1 -V457-
   • Overview. Refer to OVERVIEW - BATTERY COOLING MODULE .
8. Hybrid Battery Recirculation Door Positioning Motor 2 -V480-
   • Overview. Refer to OVERVIEW - BATTERY COOLING MODULE .
9. Temperature Sensor before Hybrid Battery Evaporator -G756-
   • Overview. Refer to OVERVIEW - BATTERY COOLING MODULE .
