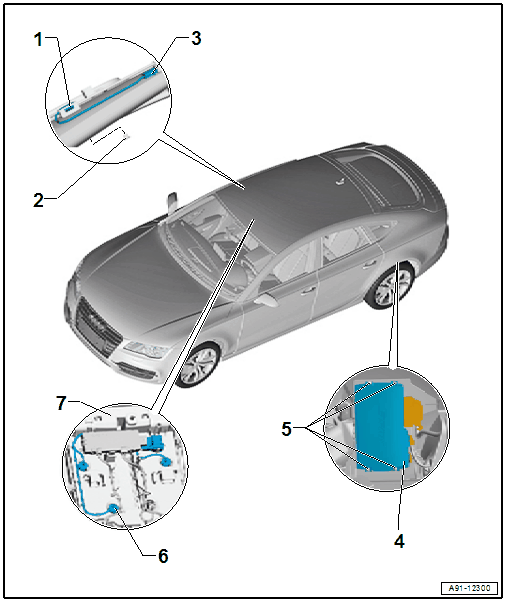

Component Location Overview - Sound System, Sound Amplifier, Microphones, Standard, BOSE, From My 2015
- ANC Microphone with Retaining Plate
- Quantity: 4
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
- Trim
- Quantity: 4
- Wiring Harness Coupling
- Quantity: 4
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
- Digital Sound System Control Module -J525-
- Connector Assignment, 9VD. Refer to the Appropriate Wiring Diagram.
- Connector Assignment, 8RY. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, STANDARD AND BOSE, FROM MY 2015 .
- Screw
- 4 Nm
- Quantity: 4
- Interior Microphone -R74-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Front Interior Lamp -W1-
- With Microphone Unit in Front Roof Module - R164-
- Removing and installing. Refer to CONTROLS . .
